What is Intel Expanded Metal?
Intel Expanded Metal is made of hot rolled steel sheet SPHC, SAE 1008 and cold rolled steel KSD3512(JISG3141). It is manufactured with minimal steel for safe use to shorten construction time and to use it in large areas. It is an economical choice for civil engineering, construction, vehicles, and other mining and manufacturing industries,and has KSD3601 designation.KSD
The process of manufacturing Intel's steel wire mesh.
- Propels material to 1/2 the width of mesh under the upper knife.
- Upper knife descends to form a half diamond form mesh.
- Upper knife ascends completely and moves 1/2 the width of mesh.
- At the same time, the material advancesat a width 1/2 of mesh once again.
- At the same time, the material advancesat a width 1/2 of mesh once again.
- Upper knife goes up repeat this process to make diamond shaped mesh.
인텔철판망 제조 과정
1Propels material to 1/2 the width of mesh under the upper knife.
2Upper knife descends to form a half diamond form mesh.
3Upper knife ascends completely and moves 1/2 the width of mesh.
4At the same time, the material advancesat a width 1/2 of mesh once again.
5The upper knife comes in and forms diamond shaped mesh.
6Upper knife goes up repeat this process to make diamond shaped mesh.
Intel Expanded Metal Product Guide
-
STANDARD TYPE
Guard net for various machines, Belt cover, partition, Cable Doctor, construction door gratings
-
GRATING TYPE
Widely used for floors, corridors, stairs, conveyer passage, catchment covers in various factories, ships, mining construction, bridge inspection roads
-
FENCE TYPE
Used for fences in factories, housing, truce line barbed wire, fenced in parks, highway median strips and for falling rock prevention
-
WIRE MESH TYPE
Road pavement, construction, factory side gutters, concrete construction, concrete flooring
-
METAL LATH TYPE
On-wall finishing materials, concrete reinforcement, fencing, sound proof and laggings reinforcement, filter grille, construction facilities, sound-proof walls and other interior materials
-
FLAT TYPE
Expanded Metal is run through a roller so that the strand and bond parts are in line
-
INTEL MESH TYPE
By passing the expanded metal through the skin pass roller, the stainless steel and the bond portion are made to be the same plane.

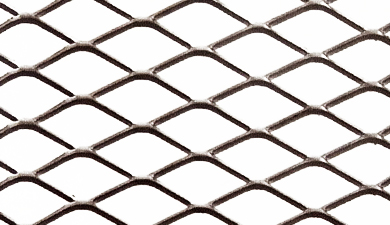

STANDARD TYPE
Use and features
Suitable for guard nets for various machines, partitions, cable doctors, grating doors for buildings
- Elegant exterior suitable for decorative purposes
- Easy and economic construction
- Sturdy and durable
- Bus engine covers, trash cans, equipment protection, equipment safety nets, vehicle accessory boxes, etc.
- Skills and verification : KS D 3601
- Export countries/regions : U.S., Japan, Hong Kong, Southeast Asia, Central and South America, Africa, etc.

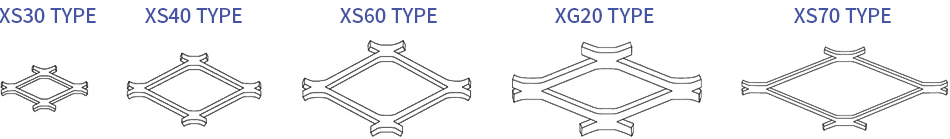

INTEL STEEL STYLE
| KS.JIS | kg/㎡ | MESH | STRAND | 3'*6' | 4'*8' | |||
|---|---|---|---|---|---|---|---|---|
| MODEL | SWM | LWM | T | W | kg | kg | ||
| XS | 31 | 2.36 | 12 | 30.5 | 1.2 | 1.5 | 3.95 | 7.01 |
| 32 | 4.18 | 1.6 | 2.0 | 7.01 | 12.5 | |||
| 33 | 9.03 | 2.3 | 3.0 | 15.10 | 26.8 | |||
| XS | 41 | 2.26 | 22 | 50.8 | 1.6 | 2.0 | 3.78 | 6.80 |
| 42 | 4.10 | 2.3 | 2.5 | 6.86 | 12.2 | |||
| 43 | 8.00 | 3.2 | 3.5 | 13.40 | 23.8 | |||

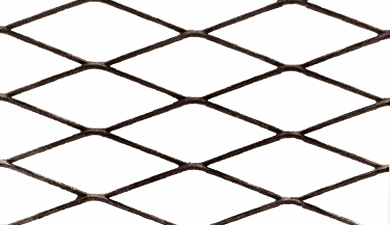

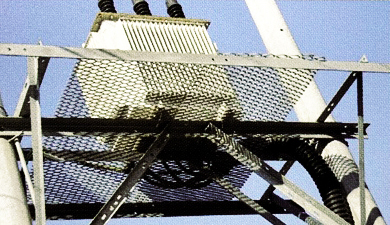

GRATING TYPE
Use and features
Suitable for guard nets for various machines, partitions, cable doctors, grating doors for buildings
- Light, sturdy, easy construction
- Superb anti-sliding effect for safe walking
- Well-lit, well-ventilated and economical
- Complete replacement for checkered plate and steel grating
- XG 11~14 TYPE:NONE SLIP product possible
- Skills and verification : KS D 3601
- Export countries/regions : U.S., Japan, Hong Kong, Southeast Asia, Central and South America, Africa, etc.
INTEL STEEL STYLE
| KS.JIS | kg/㎡ | MESH | STRAND | 3'*6' | 4'*8' | |||
|---|---|---|---|---|---|---|---|---|
| MODEL | SWM | LWM | T | W | kg | kg | ||
| XG | 11 | 14.5 | 34 | 135.4 | 4.5 | 7.0 | 24.2 | 43.1 |
| 12 | 19.4 | 6.0 | 7.0 | 32.4 | 57.7 | |||
| 13 | 24.9 | 6.0 | 9.0 | 41.6 | 74.0 | |||
| XG | 21 | 13.7 | 36 | 101.6 | 4.5 | 7.0 | 22.9 | 40.7 |
| 22 | 18.3 |
6.0 | 7.0 | 30.6 | 45.4 | |||
| 23 | 23.6 | 6.0 | 9.0 | 39.5 | 70.1 | |||
| 31.4 | 6.0 | 9.0 | 52.5 | 93.3 | ||||

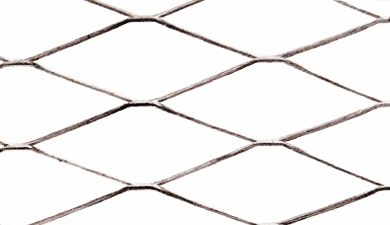

FENCE TYPE
Use and features
- Used as fences for factories, housing, truce line barbed wires, fences in parks, highway median strips, wind shielding, light shielding and snow nets
- Elegant, decorative exterior
- Sturdy and durable; economical
- Convenient handling and construction
- Great shading effect conducive to safe driving
- Prevents strong wind and snow buildup on roads by changing the flow of wind and snow direction
- Skills and verification : KS D 3601
- Export countries/regions : U.S., Japan, Hong Kong, Southeast Asia, Central and South America, Africa, etc.
INTEL STEEL STYLE
| KS.JIS | kg/㎡ | MESH | STRAND | 3'*6' | 4'*8' | |||
|---|---|---|---|---|---|---|---|---|
| MODEL | SWM | LWM | T | W | kg | kg | ||
| XS | 61 | 31.9 | 34 | 76.2 | 2.3 | 3.0 | 5.33 | 9.48 |
| 62 | 5.91 | 3.2 | 4.0 | 9.88 | 17.6 | |||
| 63 | 10.4 | 4.5 | 5.0 | 17.4 | 30.9 | |||
| XS | 71 | 2.53 | 50 | 152.4 | 2.3 | 3.5 | 4.23 | 7.52 |
| 72 | 4.02 | 3.2 | 4.0 | 6.72 | 12.0 | |||
| 73 | 7.06 | 4.5 | 5.0 | 118.2 | 21.0 | |||

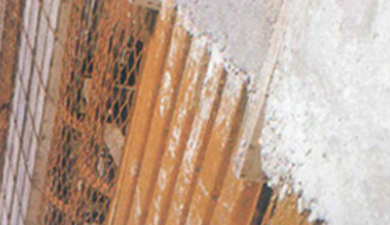

WIRE MESH TYPE
Use and features
Used in road pavement, construction, factory side gutters, concrete construction and concrete floors
- Good concrete adhesion (enhances the function of R.C material by increasing the cohesionand dispersing cracks of CONCRETE in BOND area)
- Easy construction and minimizes labor cost
- Reinforcing bar placer becomes unnecessary. (Existing steel construction requires manual operation and experience to process and assemble, but expanded metal operation is 30~50% more efficient and reduces the requirement of the steel by 20-30%, which gives the entire construction an economical edge.)
- No cracking, erosion, or damage in severe cold.
- Skills and verification : KS D 3601
- Export countries/regions : U.S., Japan, Hong Kong, Southeast Asia, Central and South America, Africa, etc.
INTEL STEEL STYLE
| KS.JIS | MESH | STRAND | RATE OF EXP ANSION |
(KG/M) | RATE OF EXP ANSION |
|||
|---|---|---|---|---|---|---|---|---|
| MODEL | SWM | LWM | T | W | ||||
| XS | 81 | 75 | 203.2 | 3.2 | 4.0 | 9.38 | 2.68 | SSS1200-1 |
| 82 | 4.5 | 5.0 | 7.5 | 4.71 | 752 | |||
| 83 | 6.0 | 6.0 | 6.25 | 7.54 | 753 | |||
| 120 | 250 | 2.3 | 3.5 | 17.1 | 1.06 | SS1200-1 | ||
| 3.2 | 4.0 | 15 | 1.67 | 1200 | ||||
| 4.5 | 5.0 | 12 | 2.94 | 1201 | ||||
| 4.5 | 7.0 | 8.57 | 4.12 | 1202 | ||||
| 4.5 | 7.0 | 8.57 | 5.50 | 1203 | ||||
| 4.5 | 9.0 | 6.67 | 7.06 | 1204 | ||||
METAL LATH TYPE
Use and features
Finishing material of walls, concrete reinforcement, fences, sound-proof and lagging material, reinforcement, filter grilles, architecture facilities, sound-proofing walls and other interior design
- Skills and verification : KS D 3601
- Export countries/regions : U.S., Japan, Hong Kong, Southeast Asia, Central and South America, Africa, etc.
INTEL STEEL STYLE
| MODEL | MESH | STRAND | kg/㎡ | |||
|---|---|---|---|---|---|---|
| SWM | LWM | T | W | |||
| DL | 31 | 3 | 6 | 0.6 | 0.7 | 1.47 |
| 32 | 0.6 | 1.0 | 3.14 | |||
| 33 | 0.8 | 1.2 | 5.02 | |||
| DL | 41 | 4 | 8 | 0.4 | 0.7 | 1.09 |
| 42 | 0.6 | 0.9 | 2.12 | |||
| 43 | 0.8 | 1.0 | 3.14 | |||
| DL | 61 | 6 | 12 | 0.4 | 1.2 | 1.26 |
| 62 | 0.7 | 0.8 | 2.20 | |||
| 63 | 1.0 | 1.5 | 3.93 | |||
| DL | 91 | 9 | 18 | 0.4 | 0.6 | 0.42 |
| 92 | 0.4 | 1.2 | 0.84 | |||
| 93 | 1.0 | 1.5 | 2.62 | |||
| DL | 121 | 12 | 24 | 0.4 | 0.8 | 0.42 |
| 122 | 0.7 | 1.5 | 1.37 | |||
| 123 | 1.0 | 2.0 | 1.96 | |||
| DL | 151 | 15 | 30 | 0.4 | 0.5 | 0.21 |
| 152 | 1.0 | 1.5 | 1.57 | |||
| 153 | 1.0 | 1.8 | 2.26 | |||
| DL | 231 | 23.4 | 52 | 0.8 | 1.0 | 0.54 |
| 232 | 1.2 | 1.5 | 1.21 | |||
| 233 | 1.6 | 2.0 | 2.15 | |||

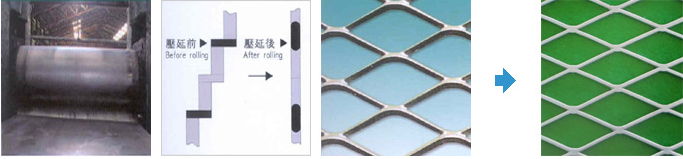

FLAT TYPE
Use and features
Uplifts on the surface of expanded metal can be one of its most beneficial features used for various purposes, but depending on the usage, they can become a disadvantage.
In these cases, expanded metal is pushed through a skin path roller so that the strand and bond are on the same plane.
- Export countries/regions : U.S., Japan, Hong Kong, Southeast Asia, Central and South America, Africa, etc.
INTEL STEEL STYLE
| MODEL | MESH | STRAND | (kg/㎡) | |||
|---|---|---|---|---|---|---|
| SWM | LWM | T | W | |||
| DF | 131 | 12.7 | 32 | 1.0 | 1.7 | 2.12 |
| 132 | 1.3 | 2.4 | 3.91 | |||
| 133 | 1.8 | 3.1 | 6.84 | |||
| DF | 241 | 23.4 | 54 | 1.3 | 2.6 | 2.29 |
| 242 | 1.8 | 3.1 | 3.67 | |||
| 243 | 2.8 | 4.4 | 1.14 | |||
| DF | 251 | 25.4 | 63 | 1.3 | 2.5 | 1.88 |
| 252 | 1.8 | 3.0 | 3.37 | |||
| 253 | 2.7 | 3.9 | 7.7 | |||
| DF | 340 | 33.9 | 82.9 | 1.3 | 3.1 | 1.41 |
| 92 | 1.8 | 3.3 | 3.04 | |||
| 93 | 2.7 | 4.4 | 5.57 | |||
EXPORT STYLE
| STYLE NO | kg/㎡ | MESH | STRAND | 3'*6' | 4'*8' | |||
|---|---|---|---|---|---|---|---|---|
| SWM | LWM | T | W | kg | kg | |||
| 1/2" | NO.16 | 3.91 | 12.7 | 32.0 | 1.3 | 2.4 | 6.54 | 11.6 |
| NO.13 | 6.84 | 1.8 | 3.1 | 11.4 | 20.3 | |||
| 3/4" | NO.16 | 2.29 | 23.4 | 54.0 | 1.3 | 2.6 | 3.84 | 6.82 |
| NO.13 | 3.71 | 1.8 | 3.1 | 6.20 | 11.0 | |||
| NO.10 | 5.62 | 1.8 | 4.6 | 9.40 | 16.7 | |||
| NO.9 | 8.36 | 2.7 | 4.4 | 14.0 | 24.8 | |||
| 1/2" | NO.16 | 2.00 | 25.4 | 63.0 | 1.3 | 2.5 | 3.34 | 6.00 |
| NO.13 | 3.55 | 1.8 | 3.0 | 5.94 | 10.6 | |||
| NO.9 | 4.49 | 2.7 | 3.9 | 10.9 | 19.3 | |||
| 3/4" | NO.16 | 1.85 | 33.9 | 82.9 | 1.3 | 3.1 | 3.09 | 5.50 |
| NO.13 | 2.79 | 1.8 | 3.3 | 4.66 | 8.29 | |||
| NO.10 | 3.52 | 1.9 | 4.2 | 5.89 | 10.5 | |||
| NO.9 | 5.57 | 2.7 | 4.4 | 9.34 | 16.6 | |||

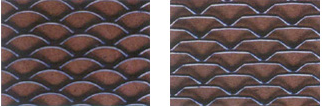

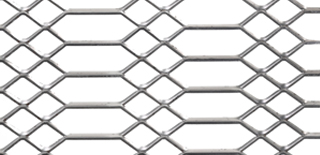

INTEL MESH TYPE
Photos
INTEL STEEL STYLE
| MODEL | TYPE | MESH | STRAND | SIZE | 비고 | |||
|---|---|---|---|---|---|---|---|---|
| SWM | LWM | T | W | |||||
| IL | 101 | Regualr Mesh | 2.4 | 6.1 | 0.7 | 0.4~ | 1219 | 3/32" | 102 | 3.2 | 7.6 | 0.7~ | " | " | 1.8" | 103 | 4.8 | 12.7 | " | " | " | 3/10" | 104 | 6.3 | 25.4 | " | " | " | 1/4" |
| IH | 201 | Honex Mesh(벌집무늬) | 3.2 | 7.6 | " | " | " | 1/8" | 202 | 5.8 | 8.4 | " | " | " | 13/64" | 203 | 9.5 | 19.5 | " | " | " | 3/8" |
| IS | 301 | Ship mesh(돛단배무늬) | 8 | 13.8 | " | " | " | 1/8" | 302 | 6.3 | 20.3 | " | " | " | 의장등록 | 303 | 12 | 30.5 | " | " | " | " | 304 | 25.4 | 50.8 | " | " | " | " |
| IF | 401 | Festoon Mes(꽃줄무늬) | 7.9 | 15.2 | " | " | " | " | 402 | 15.9 | 30.5 | " | " | " | " | 403 | 34.8 | 76.2 | " | " | " | " | 404 | 80 | 200 | 3.0~4.0 | 2.63~3.2 | " | " |
| IA | 501 | Arrow Line(화살무늬) | 33 | 125 | " | " | " | " |
| IF | 601 | Flesta Mesh(축제무늬) | 18 | 72 | " | " | " | " |
| IB | 701 | Barcelona Mesh | 33 | 123 | " | " | " | " |
| ID | 801 | Deco Mesh | 50 | 244 | " | " | " | " |
| IE | 901 | Eye Mesh(눈무늬) | 12 | 36 | 2.0~3.0 | 1.6~2.3 | 2439 | " |
